No Longer Available - X320049 - Master Spas 120/240V APG DEL Ozonator (REFER TO X320084)

X320049 - Master Spas 120/240V APG DEL Ozonator is No Longer Available - The replacement part is X320084

This unit has a standard 4-prong adapter, not a standard wall outlet plug

This part is intended to be plugged into a spa board with matching receptacle.

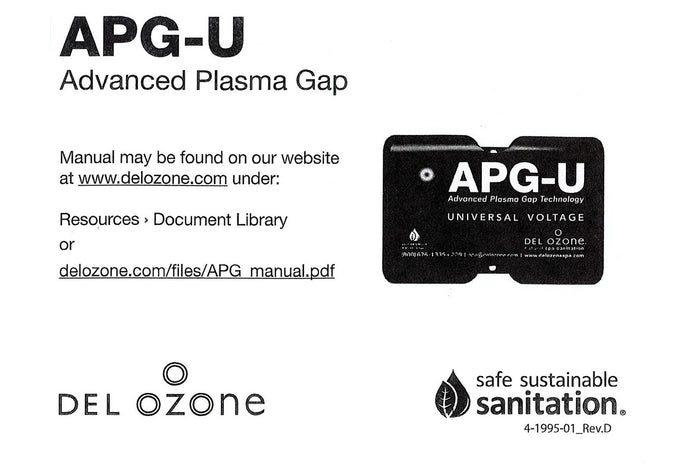

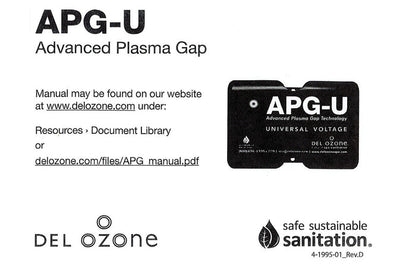

Part reads the following on the top label:
P 308
120 / 240 V

Part reads the following on the side label:
DEL OZONE
APG-U-E OZONE GENERATOR
120-240V / 50-90mA / 50-60Hz
P/N 4-1930-04 Rev. B

UL FILE#
E145687

APG-U-XX
Advanced Plasma Gap

Dimensions:
Width: 4.75 inches (12.065 cm)
Length: 2.25 inches (5.715 cm)
Weight: 1 lb. (454 g)
Cord Length: 43 inches (109.22 cm)



This part is intended for Master Spa Tubs and may not work with other Tub Brands
